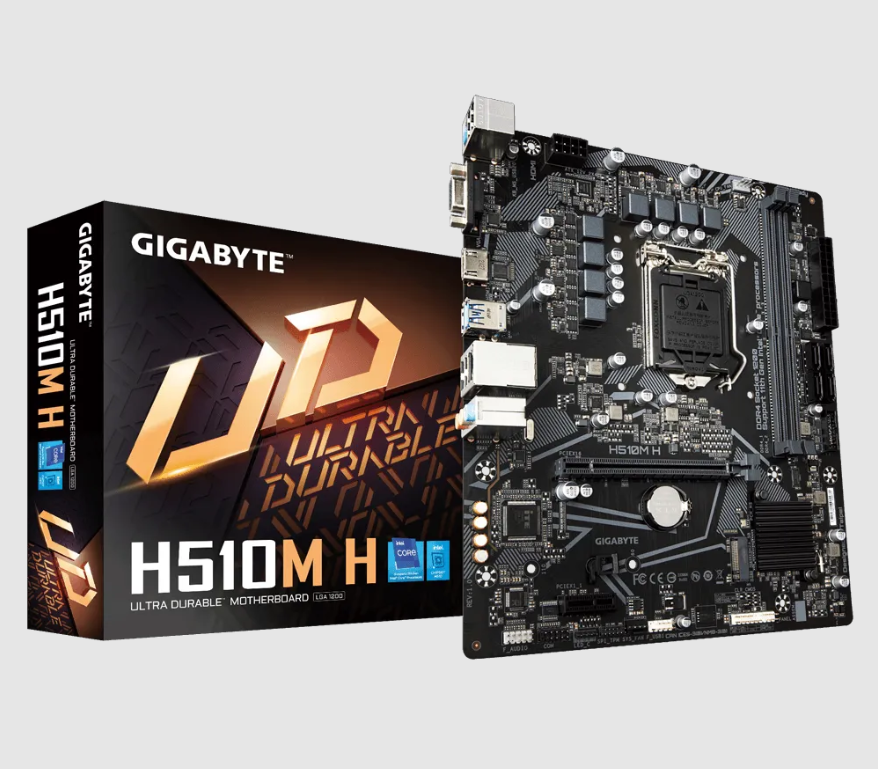

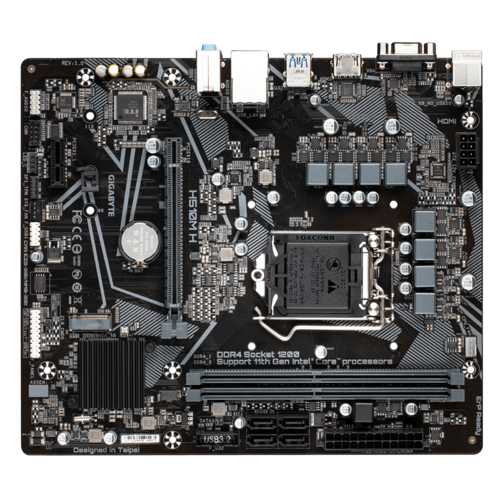

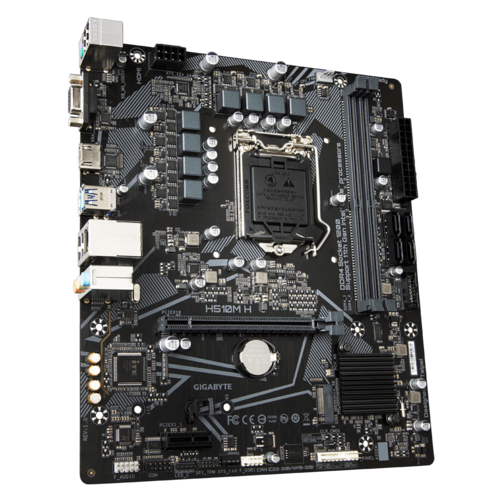

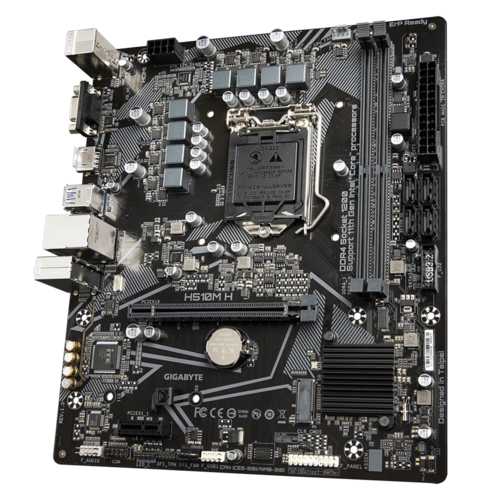

Gigabyte Motherboard – H510M H (rev. 1.0/1.1/1.5)

Intel H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

اطلب من خلال الواتساب

Product Description

CPU :
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
L3 cache varies with CPU

Chipset : Intel H510 Express Chipset

DDR4 Memory

Memory Channel : Dual

Max Memory (GB) : 64 GB (32 GB single DIMM capacity)

Dual channel memory architecture

Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920×[email protected] Hz
1 x HDMI port, supporting a maximum resolution of 4096×[email protected] Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Form Factor : Micro ATX Form Factor; 24.4cm x 21.0cm

USB:
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

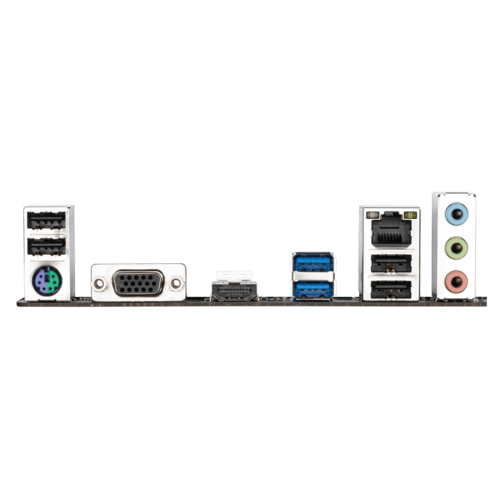

Back Panel Connectors :
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O Connectors :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
