Product Description

CPU support: Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron® processors in the LGA1151 package

Chipset : Intel H310 Express Chipset

DDR4 Memory : 2666/2400/2133 MHz memory modules (To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.)
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Memory Channel : Dual

RAM Slots : 2

Max Memory (GB) : 32

PCI-E X16 : 1 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI-E X1 : 1 (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Storage Interface : 4 x SATA 6Gb/s connectors

Onboard Graphics :
1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
(The DVI-D port does not support D-Sub connection by adapter.)
Maximum shared memory of 1 GB

LAN : Realtek GbE LAN chip (10/100/1000 Mbit)

USB :
Chipset :
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors :
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

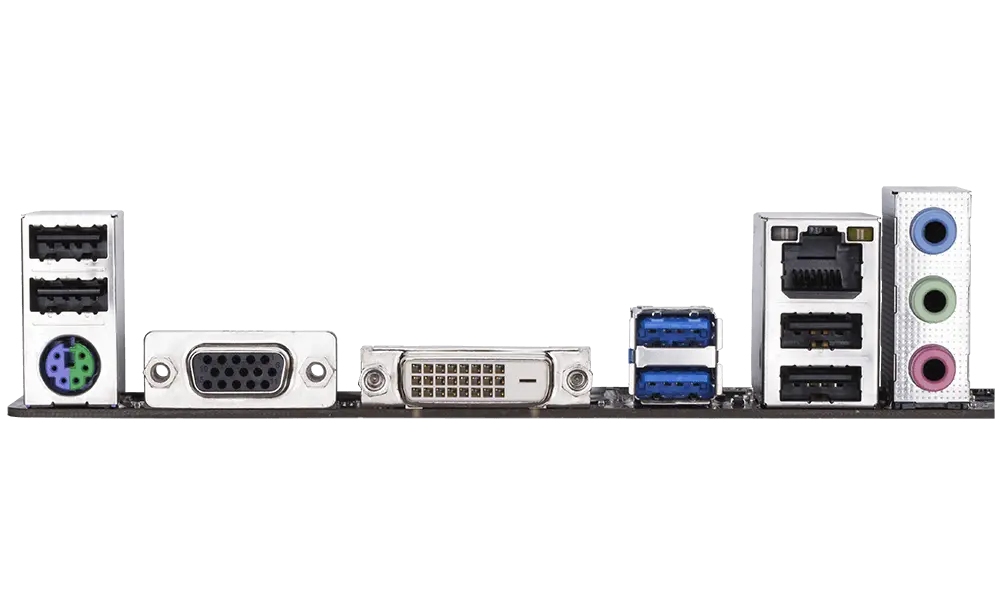

Back Panel Connectors :
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller : iTE I/O Controller Chip

Form Factor : Micro ATX Form Factor; 19.0cm x 17.4cm

Operating System : Support for Windows 10 64-bit
