Product Description

Socket : Socket 1200

CPU support:
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset : Intel B460

DDR4 Memory : 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Memory Channel :Dual Channel Memory Architecture

Expansion Slots :
Intel 10th Gen Processors : 1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel B460 Chipset : 2 x PCIe 3.0/2.0 x1

Onboard Graphics :
1 x D-Sub
1 x DVI-D

LAN : Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

Audio : Realtek ALC887 7.1-Channel High Definition Audio CODEC

USB :
Rear USB Port ( Total 6 ):
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 ):
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)

Internal I/O Connectors :
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AAFP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector

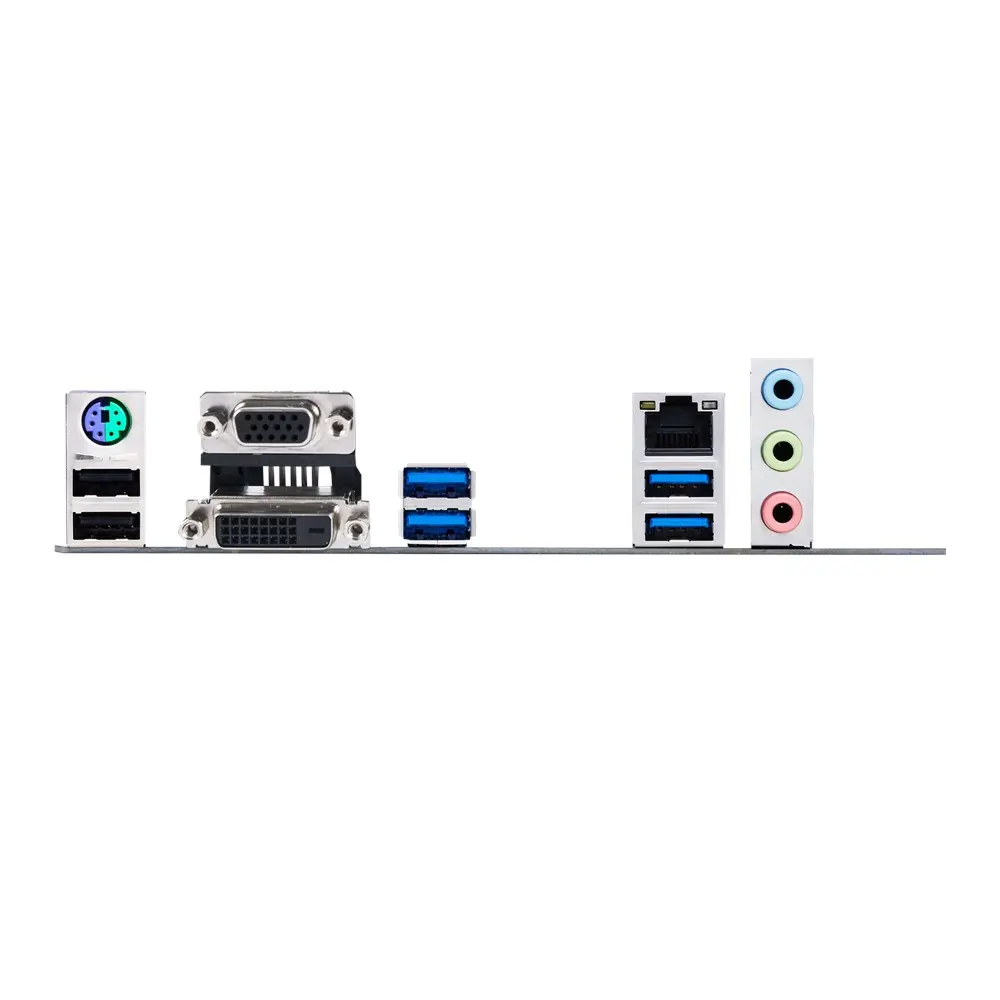

Back Panel Connectors :
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)

Form Factor : mATX Form Factor ( 22.6 cm x 21.1 cm )

Operating System : Windows 10 64-bit

ASUS Special Features :
ASUS 5X PROTECTION III:
-ASUS DIGI+ VRM
-ASUS LANGuard
-ASUS Overvoltage Protection
-ASUS Safeslot core
-ASUS Stainless-Steel Back I/O
ASUS Q-Design:
– ASUS Q-DIMM
– ASUS Q-Slot
